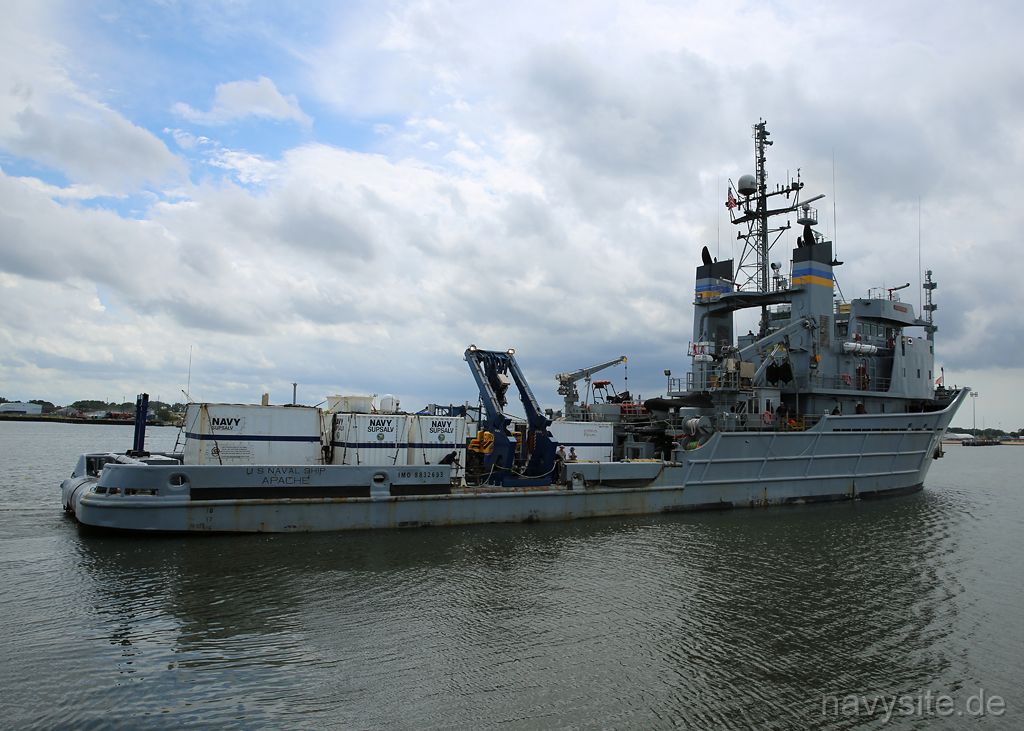

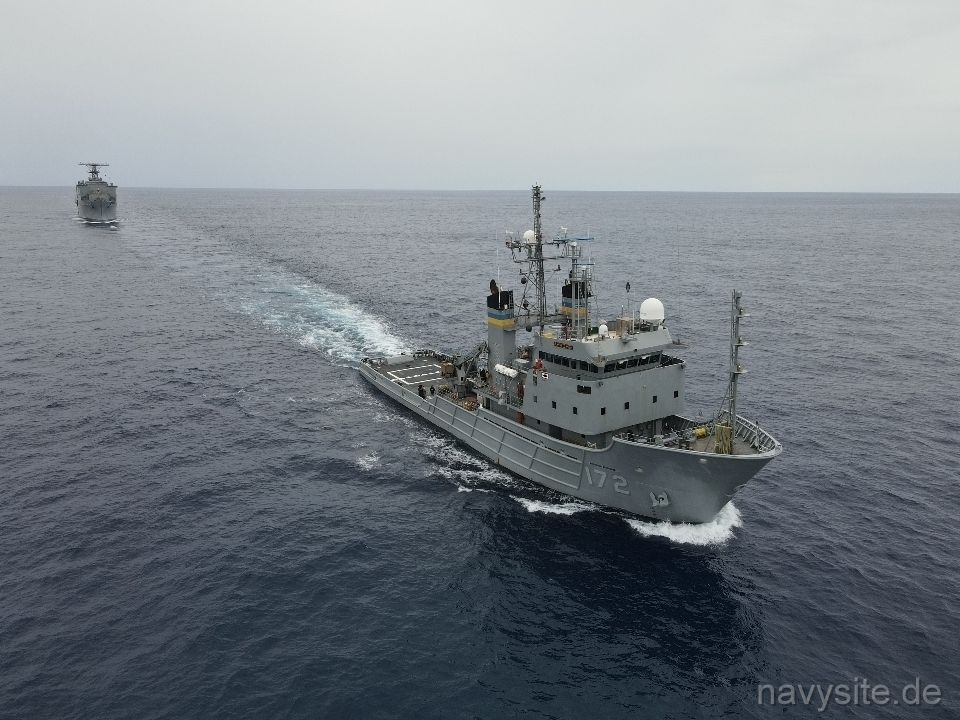

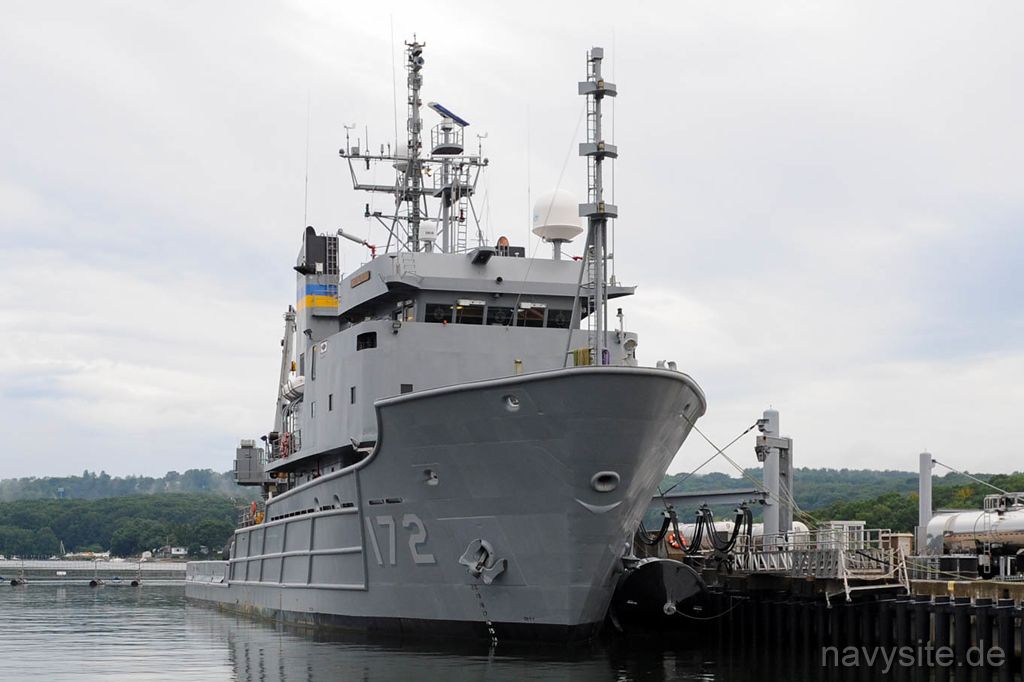

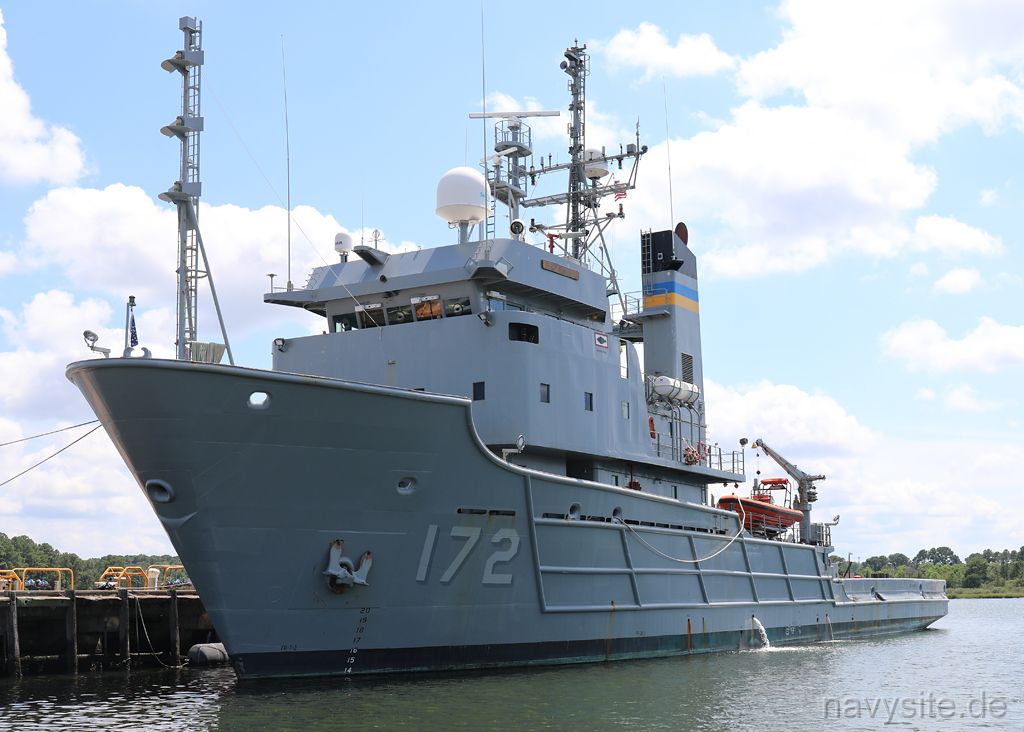

USNS Apache (T-ATF 172)

- Military Sealift Command -


USNS APACHE is the last of the POWHATAN - class ocean tugs and the fifth ship in the Navy to bear the name.

The APACHE is equipped with a 10-ton capacity crane and a bollard pull of at least 54 tons. A deck grid is fitted aft which contains 1 inch bolt receptacles spaced 24 inches apart. This allows for the bolting down of a wide variety of portable equipment. There are two GPH fire pumps supplying three fire monitors with up to 2,200 gallons of foam per minute. A deep module can be embarked to support naval salvage teams.

General Characteristics:Awarded: February 27, 1978
Keel laid: March 22, 1979
Launched: March 28, 1981
Delivered: July 23, 1981
Builder: Marinette Marine Corp., Marinette, WI.
Propulsion system: 2 GM EMD 20-645F7B diesels; 5.73 MW sustained; 2 shafts; Kort nozzles; cp props; bow thruster; 300 hp (224 kW)
Propellers: two
Length: 226 feet (68.9 meters)
Beam: 42 feet (12.8 meters)
Draft: 15.1 feet (4.6 meters)
Displacement: approx. 2,260 tons full load
Speed: 14.5 knots
Aircraft: none
Armament: none
Crew: 16 civilians and 4 naval communications technicians
Fleet: Atlantic


Back to topback to top  go to endgo to the end of the page



Back to topback to top  go to endgo to the end of the page

Crew List:

This section contains the names of sailors who served aboard USNS APACHE. It is no official listing but contains the names of sailors who submitted their information.
